In contemporary premium commercial and cultural spaces, light is never a mere backdrop. It acts as a silent guide, a curator’s brush, and the architect of spatial atmosphere. However, when spatial displays, exhibits, and layouts iterate at a high frequency, static lighting often becomes rigid. How can we enable light to adapt seamlessly to spatial transformations, achieving precise, flexible, and elegant control?
1. The "Static Shackles" of Dynamic Spaces: Why Do We Need Zoom Technology?
1.1 Frequent Display Iterations and the Physical Limitations of Fixed-Beam Luminaires
In art museums, luxury retail boutiques, and high-end furniture showrooms, change is the perpetual theme :

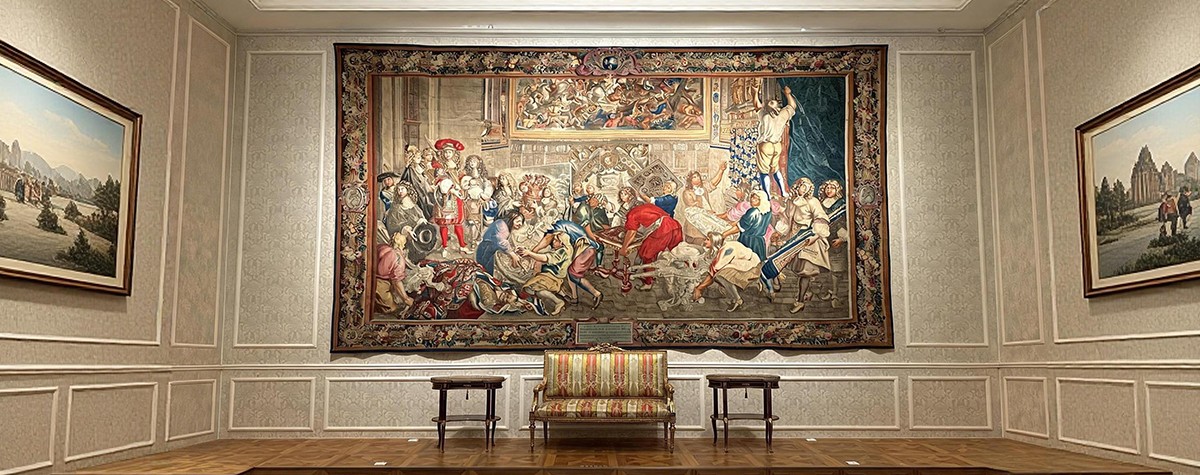

(1) Exhibition Transitions in Museums: Right after completing a curation of Impressionist paintings, a narrow 15° beam—originally precision-tailored for bronzes—falls short when facing Monet’s monumental Water Lilies.

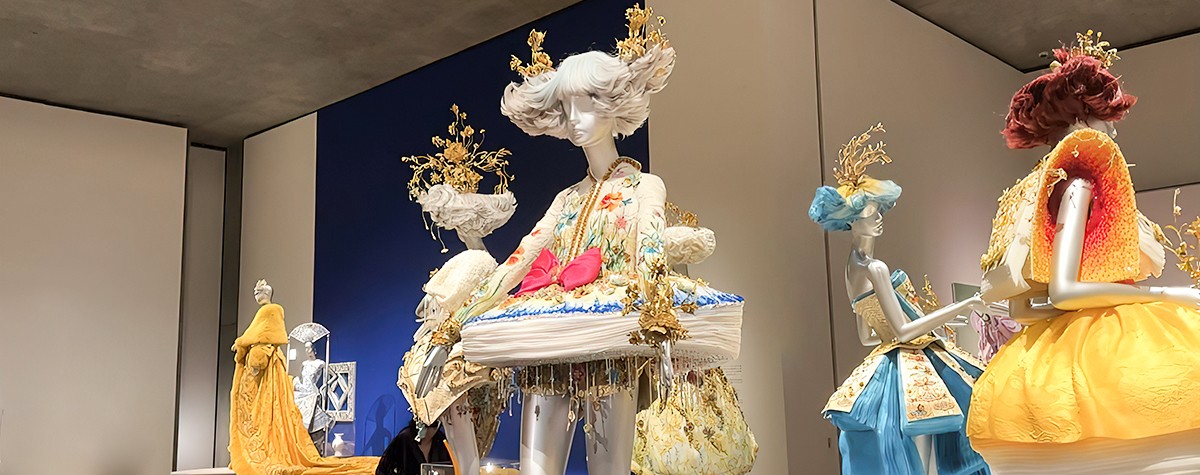

(2) Window Display Updates in Luxury Retail: Last week, a delicate wristwatch demanded an ultra-narrow beam focused sharply on the dial; this week, a full collection of travel luggage requires a soft, wide beam to fill the entire scene.
(3) Layout Reconfigurations in Furniture Showrooms: When a set of low-profile modular sofas replaces a traditional three-seater, the position, height, and form change entirely. A fixed-angle beam either cuts the furniture in half or scatters aimlessly onto irrelevant floor areas.
Once fixed-beam luminaires (such as fixed 15° or 36° options) are installed, their beam angles are permanently locked. Facing every micro-adjustment of the display, the traditional cost entails uninstallation, sourcing new product variants, and hiring electricians to re-wire via scissor lifts. This not only drains operational budgets and time in secret but also causes brands to miss critical display windows.
1.2 The Evolution of Zoom Technology: From Passive Adaptation to Active Control
The advent of zoomable luminaires grants commercial spaces the capability to switch freely between floodlighting (diffuse light) and spotlighting (focused light) within a single fixture. However, in true art and luxury commercial environments, the standard for an exceptional zoom spotlight extends far beyond the basic capability of "making a beam larger or smaller". It demands rigorous performance in optical purity, mechanical architecture, and systematic light control.
2. The Premium Optical Foundation: Five Core Metrics of High-End Zoomable Lights
2.1 Homogeneous Beam Quality: Beam Purity Across All Focal Ranges
Due to optical design flaws, conventional zoom spotlights often perform adequately only at specific pre-set angles. The moment the zoom ring is turned, a dark hole (center intensity collapse) frequently appears in the center of the beam, or a yellow-green chromatic aberration (color fringe) emerges at the edge, severely degrading the visual texture of premium spaces.
With 15 years of deep cultivation in optics, we consistently adhere to the quality standard of “Every Zoom, Perfect Beam.” Through three generations of optical system re-engineering, we guarantee two core optical metrics across all focal ranges :
(1) CRI 90+: Achieves museum-grade color rendering, ensuring exhibits are vibrant, true-to-life, and presented in their authentic texture.
(2) MacAdam Ellipse SDCM < 3: Strictly confines chromaticity shift within the limits of human imperceptibility, ensuring flawless color temperature consistency when multiple luminaires are arranged side by side.

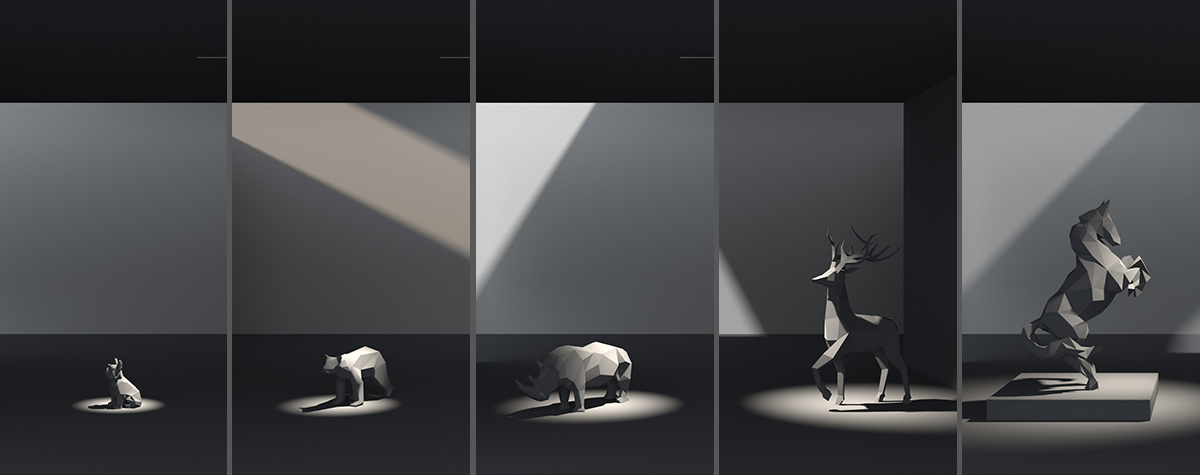

2.2 Beam Angle Distribution: From Ultra-Narrow Spot to Wide Flood
In an gallery, a miniature jade carving inside a low display case requires an ultra-narrow beam under 6° to focus precisely like a laser, while completely avoiding spilling light onto surrounding pedestals. Conversely, high-end offices or salon spaces require a wide beam over 50° to foster visual comfort.
To comprehensively cover everything from extreme accent lighting to wide ambient illumination, we provide a matrix of versatile zoom ranges, including 6° to 50° and 10° to 70°, catering to the dynamic narratives of varying spatial scales.
2.3 Geometric Beam Shaping: Breaking the Circles to Adapt to Objects

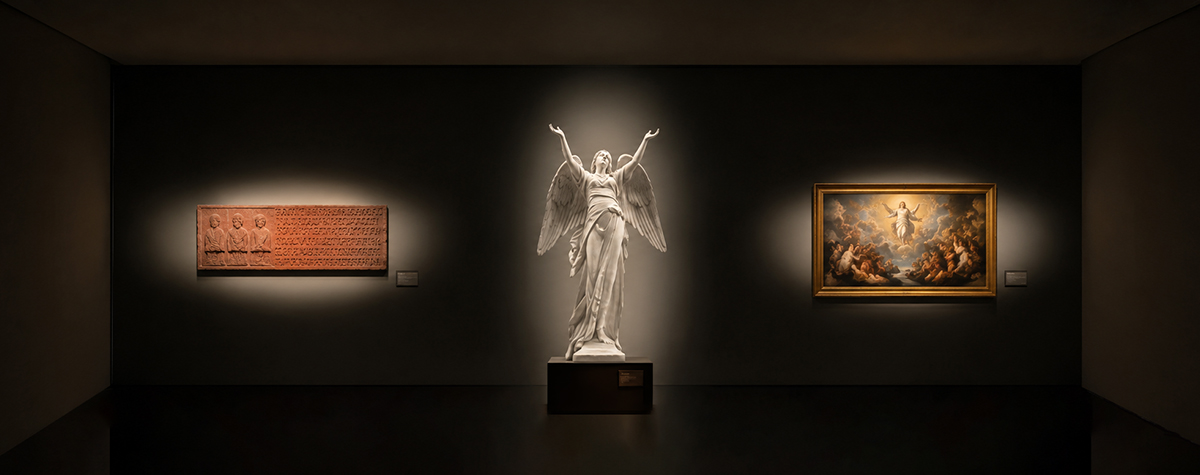

When illuminating a long, vertical calligraphy scroll on a wall, a standard circular beam leads to dim ends and an overly bright center. Similarly, circular beams fail to perfectly envelop horizontal oil paintings or vertical sculptures.
We’ve introduced a Zoomable tracklight with a Super Modular Design that allows for quick, tool-free replacement of the oval lens. With a simple single-handed snap, a circular beam is reshaped into an oval light pattern in just one second.
2.4 Superior Glare Control: Visual Comfort with Conspicuous Light and Hidden Sources
The luxurious ambience of a space is often ruined by uncontrolled stray light. Upon entering a premium environment, visitors' eyes should be drawn to the window displays, yet they are frequently distracted by piercing glare emitting from the ceiling, which directly devalues the premium quality of the space.
ENCORE’s Answer:
(1)Structural Cut-off First: By extending the depth of the luminaire housing, the cut-off angle is naturally increased, eliminating large-angle stray light directly from the structural source.

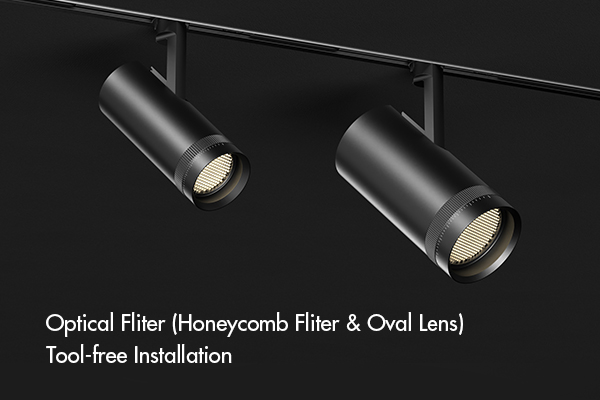

(2)Accessory Options as Safeguards: The entire product line supports the Tool-free integration of professional honeycomb louvers and soft filters, which can be installed within 30 seconds. This ensures the pure visual experience of "seeing the light but not the source" is thoroughly realized, even in standard commercial spaces with limited ceiling heights.
2.5 Tactile Aesthetics: The Fusion of Sensation and Engineering
Traditional zoom spotlights are often exceptionally cumbersome to adjust at high altitudes, requiring two hands or specialized tools. This leads to operational inefficiency and potential safety hazards.

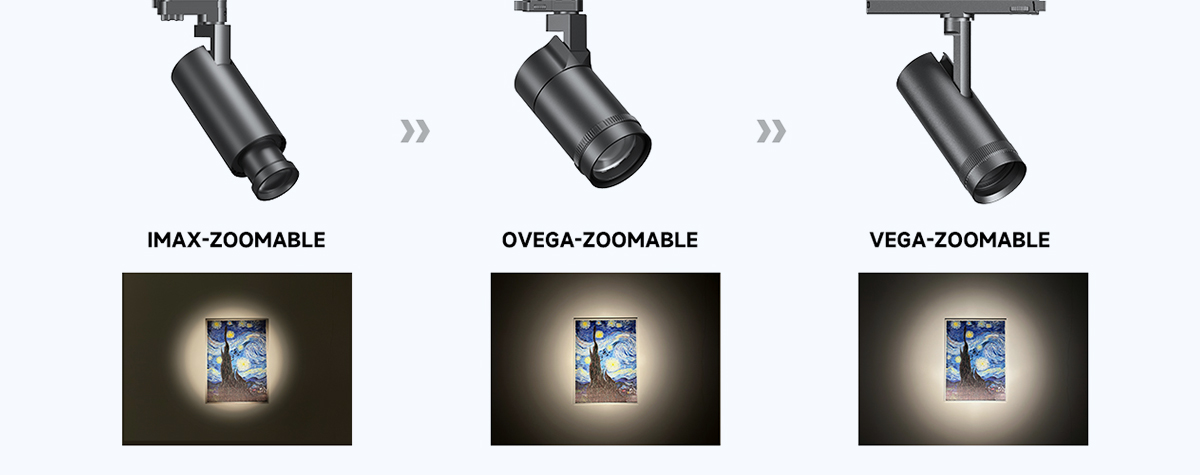

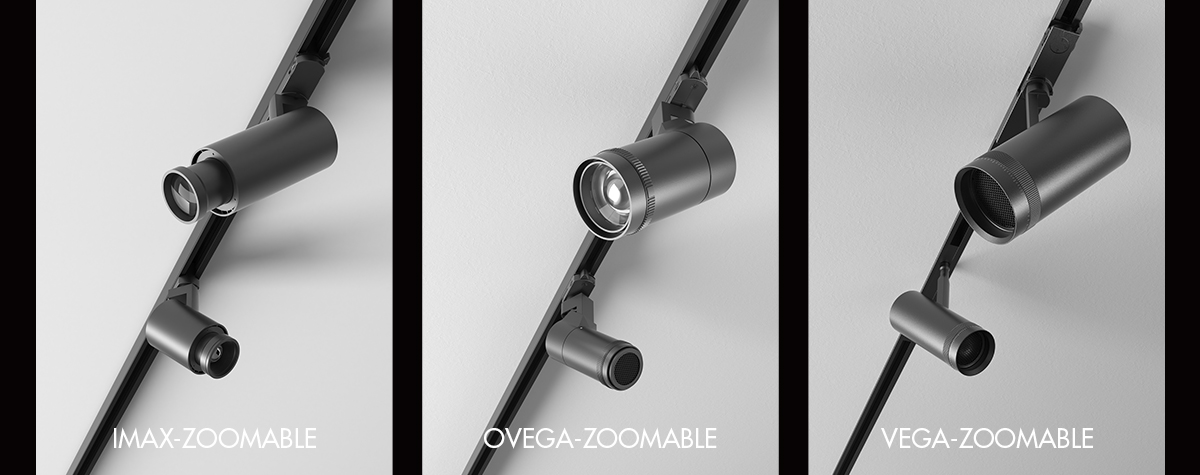

· Three Generations of Evolutionary Technology:
1st Generation (IMAX Series) · Axial Push-Pull: Achieves large-range zoom adjustments via push-pull movement of the light head, establishing the foundational technology for full-focal-range coverage.
2nd Generation (OVEGA Series) · Rubber Ring Zooming: Upgraded with a textured, heat-resistant Rubber Ring, enabling safe, efficient, single-handed precision focusing.
3rd Generation (VEGA Series) · Mechanical Damping Ring: Engineered specifically for ultra-luxury environments. The all-metal mechanical zoom ring delivers a restrained, silky, and precise mechanical damping sensation reminiscent of precision German camera lenses.

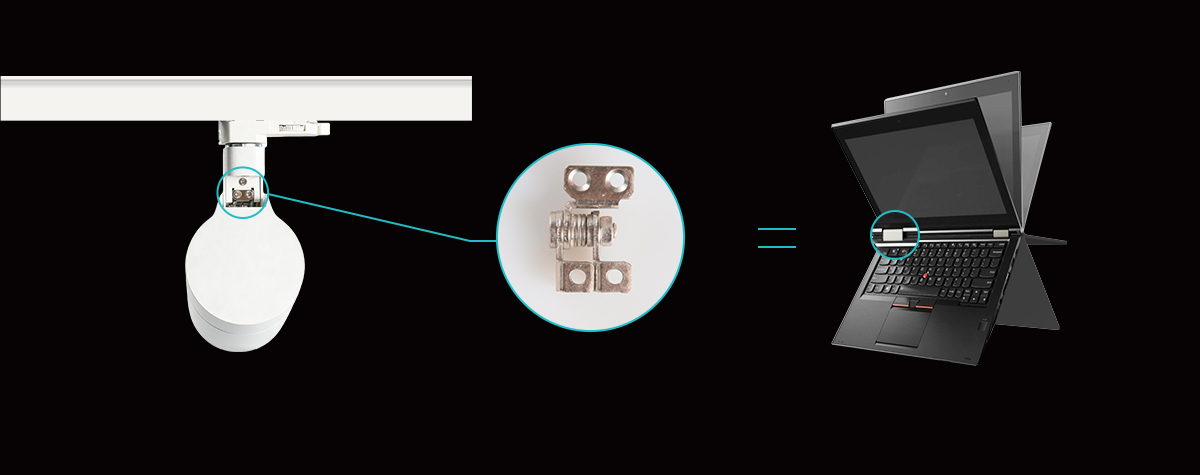

· Hinge and Mechanical Stability:A luminaire must not only be effortless to adjust but must also remain stable over long-term use. The system supports 360° horizontal rotation and 90° vertical tilt, integrating laptop-grade Hinge technology into the pivot joints. Even after countless daily maintenance wipes and micro-adjustments, the luminaire body remains tight and rigid, entirely preventing sagging or loosening caused by mechanical fatigue.
3. Multidimensional Integration: A Systematic Response to Evolving Commercial Markets
In sophisticated architectural lighting design, a space demands simultaneous balance across multiple parameters. Therefore, beyond zoomable capabilities, we provide deeper, integrated system control solutions :
3.1 Independent Deep Dimming (Built-in Dimmer)
To resolve conflicts on a single track where dark oil paintings (requiring high lux to reveal depth) coexist with fragile paper antiquities (requiring stringent light limits to prevent radiation damage), we incorporate an independent dimming module inside the luminaire. This achieves a 1% deep 0-10V / 1-10V linear dimming. Crucially, we have achieved full-frequency Flicker-free performance. Whether a photographer is capturing exhibits with a high-speed shutter or a museum needs to restrict sensitive artifact exposure strictly within 50 Lux, the visual output remains perfectly clean and crisp.

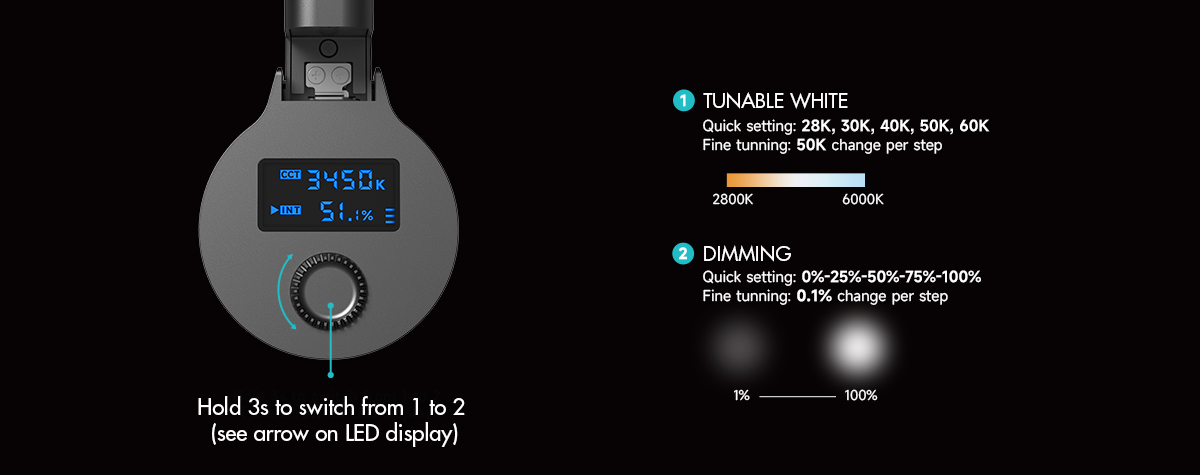

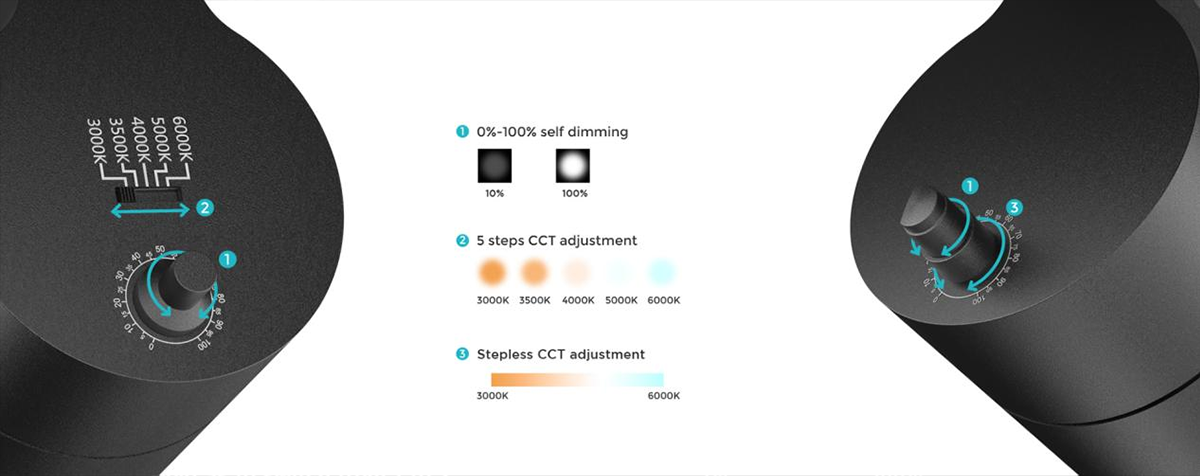

3.2 High-Precision Color Temperature Tuning and Deviation Control (CCT Adjustable)
Bronze artifacts from the Western Zhou Dynasty rely on 4000K neutral light to highlight their cold, solemn majesty, while contemporary photography or warm-toned displays require a comforting 2700K to 3000K atmosphere. We offer two options to meet different needs:
· Option A (Stepless CCT Tuning): Delivers seamless, fluid transitions from 2700K to 6000K, offering micro-adjustments as delicate as a professional audio mixing console. This is ideal for top-tier art galleries and luxury hospitality environments with demanding ambiance requirements.
· Option B (Stepped CCT Selection): Features pre-set, locked standard color temperature increments. This configuration guarantees absolute uniformity of color temperature across multiple zones or retail chain stores, greatly facilitating standardized quality control for global brands.
· Planckian Black Body Locus Deviation Δ(u,v) ≤±0.002: Thoroughly eliminates common color defects found in standard tuning spotlights, such as greenish tints (positive deviation causing a cheap look) or purplish hues (excessive negative deviation), sustaining an exceptionally pure color presentation.
3.3 Multidimensional Integration: The 3-in-1 Systematic Solution

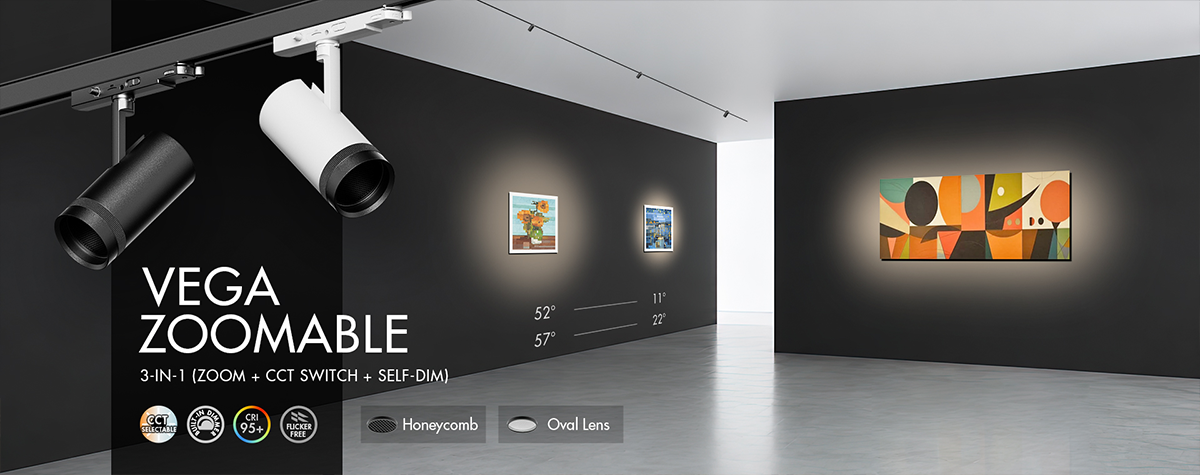

Since a space inherently demands variations in angle (Zoom), brightness (Dimming), and atmosphere (CCT), why should designers deal with three separate control protocols and multiple vendors? We have launched a comprehensive CCT + Dimming + Zoom 3-in-1 systematic solution.
With a single luminaire, we provide a comprehensive, all-inclusive light and shadow answer for high-end galleries, luxury retail, and systematic commercial lighting.
For any future display reconfigurations, the space will never require additional hardware investments, truly achieving a sustainable, full-lifecycle approach to dynamic optical control.
Conclusion
With 15 years of dedicated focus on premium commercial lighting, we profoundly understand the authentic operational pain points of spaces experiencing frequent curation updates and display changes. We recognize the inefficiency of a whole team spending hours adjusting the angle of a single fixture, and the waste of tearing down massive hardware infrastructure simply because a new artwork was introduced.
Hence, we are not merely manufacturing an aesthetically pleasing luminaire. We are committed to delivering a living, dynamic optical solution capable of transcending time cycles. A screwless, minimalist exterior allows the fixture to dissolve into architectural invisibility; a precision mechanical ring empowers single-finger mastery; and multidimensional technical integration renders light entirely obedient to your intent.
Fewer hardware hassles, more control over light. This is our sincere answer dedicated to premium commercial spaces.
